Washing
Washing instructions
Before washing your textile gloves, make sure to remove all electronics.
We recommend hand washing the textile gloves, and air drying them afterwards.
The textile gloves can be machine washed at up to 60°C / 140°F, and tumble dried at a medium temperature.
Removing electronics
- First remove the interchangeable batteries from the
Top Module
, by squeeze the sides of thebattery
.
- While squeezing, pull the
battery
to remove it from theTop Module
.

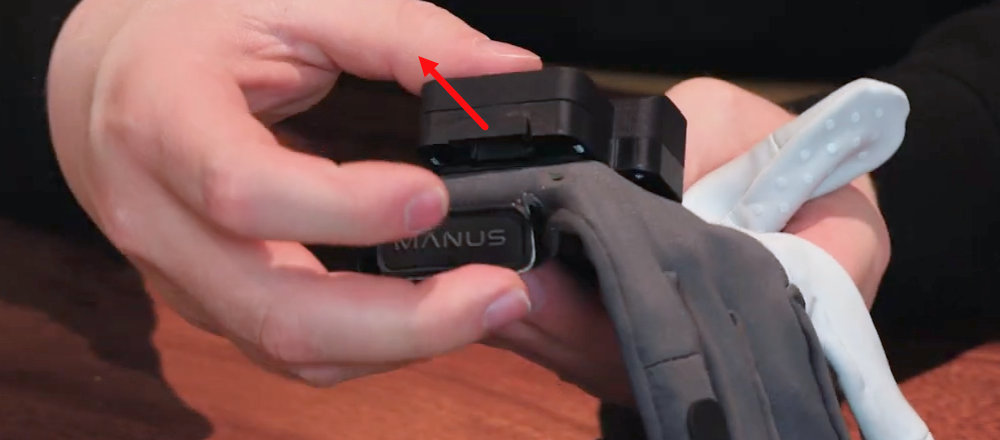

- Pull the
latch
to unlock theTop Module
.

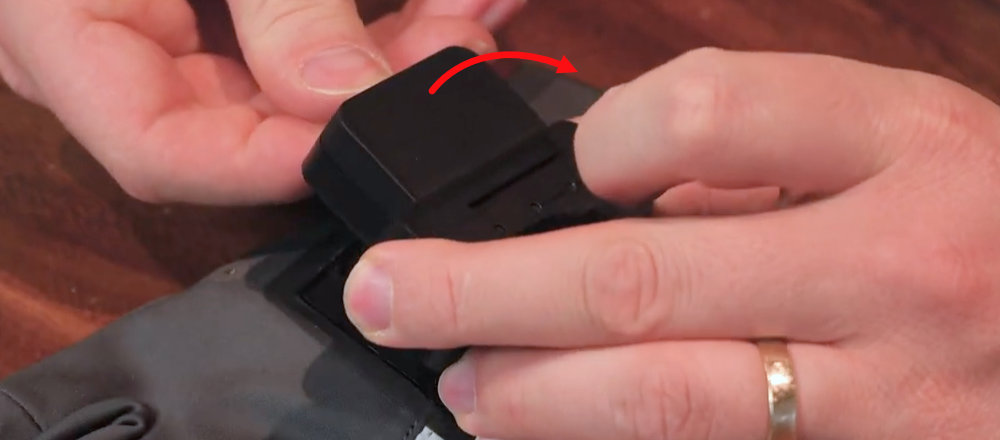

- Rotate the
Top Module
away to uninstall it from theSensor glove
.

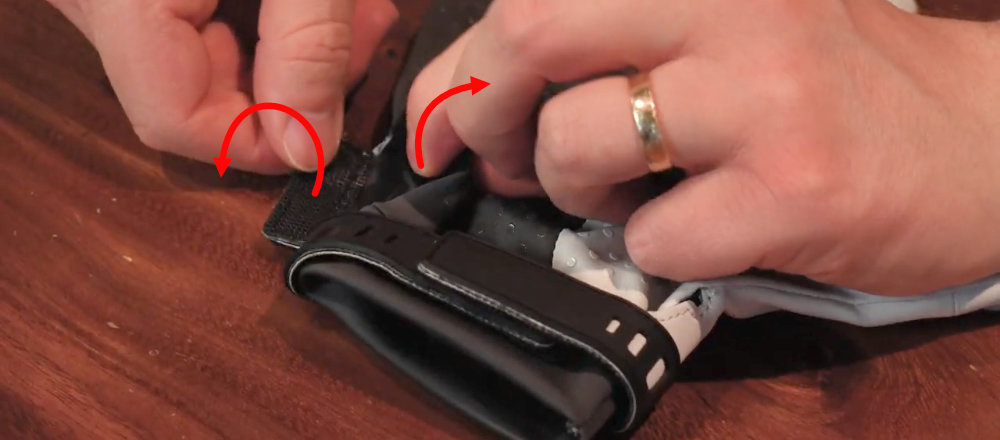

- Open the velcro on the side of the glove.

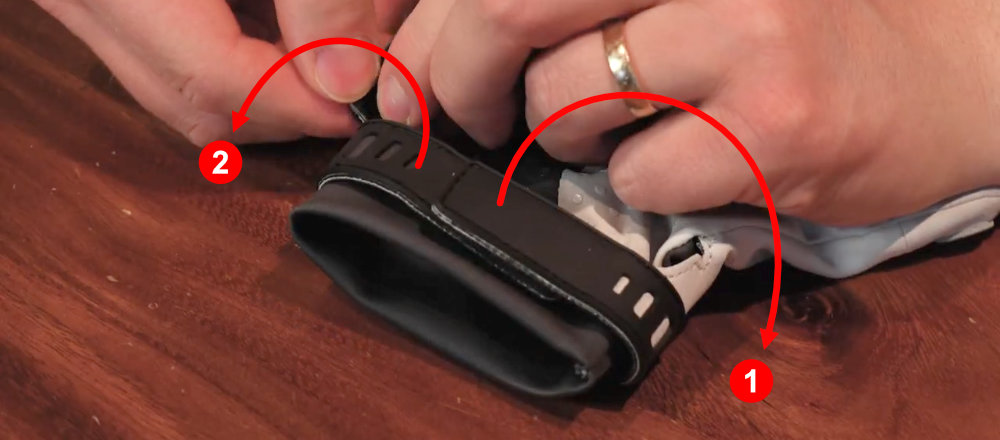

- Open both velcro straps.

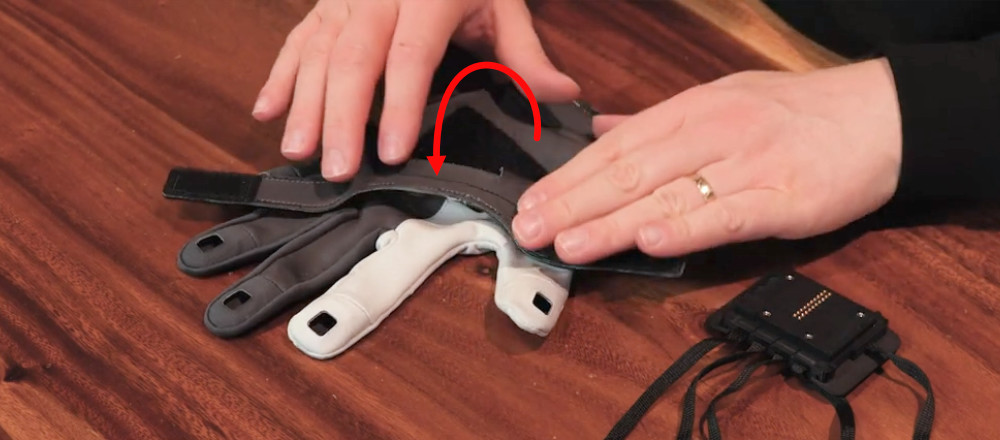

- Fold open the glove.

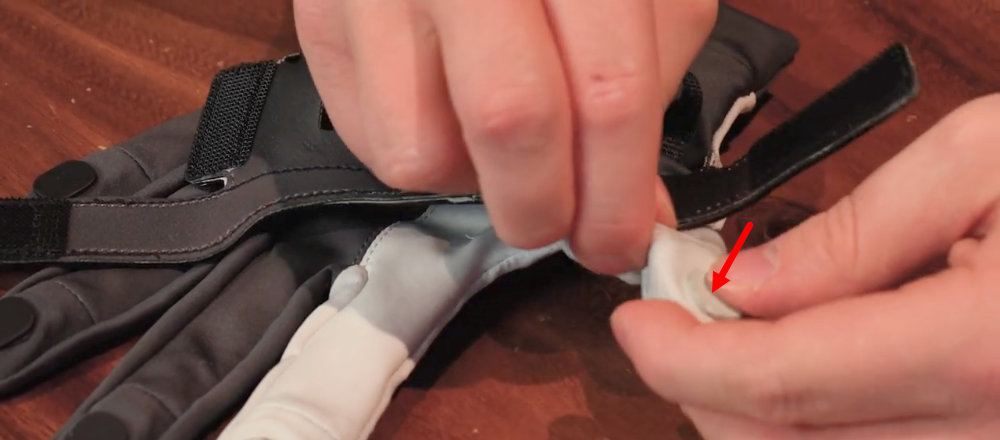

- Gently press down onto the
fingertip sensors
to detach them from the fabric.
- Carefully pull the sensor cables to remove all sensors from the glove.

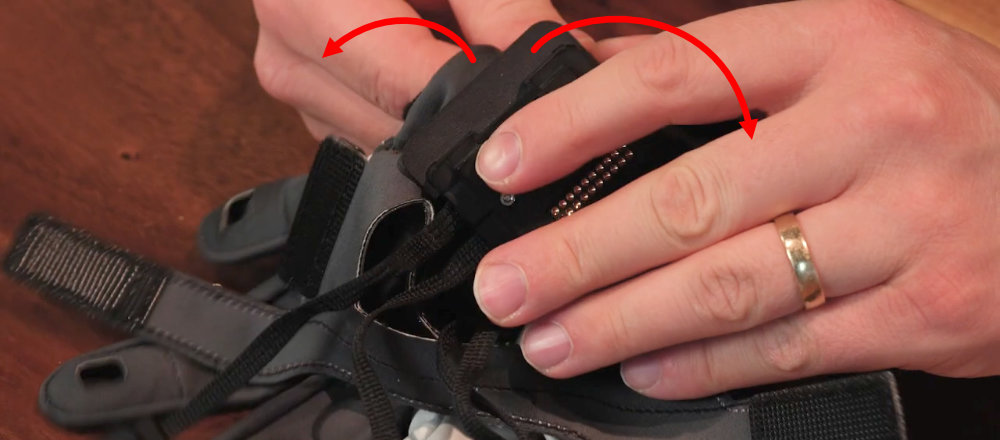

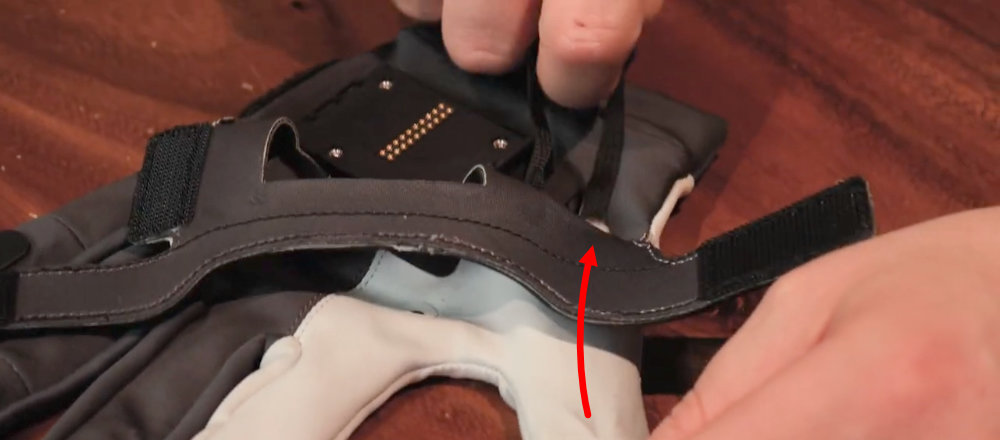

- Detach the glove module base by pulling the velcro apart.

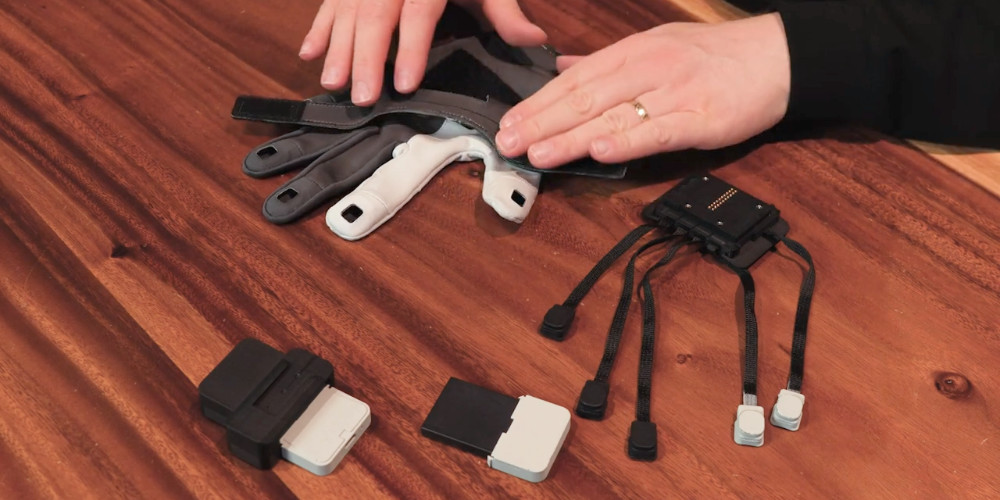

With all electronics removed, the textile gloves can now be washed.
Installing electronics
- Make sure the textile is fully dry before installing the electronics.
- Fold open the glove.

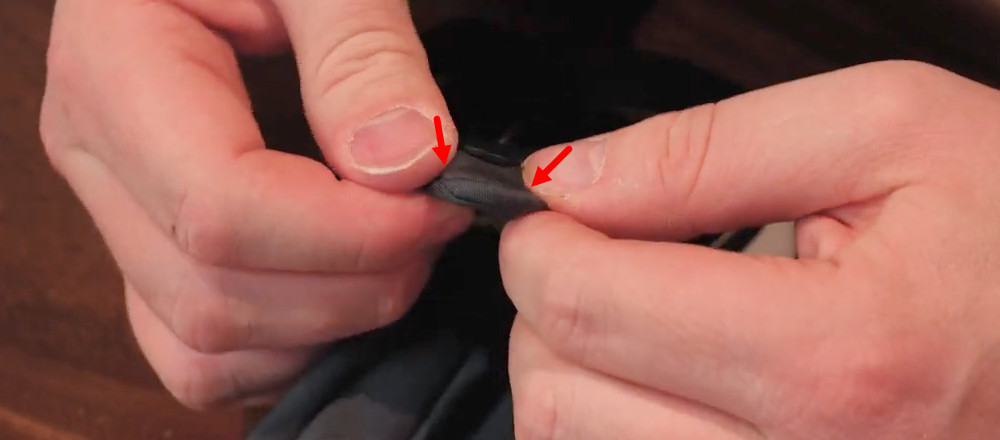

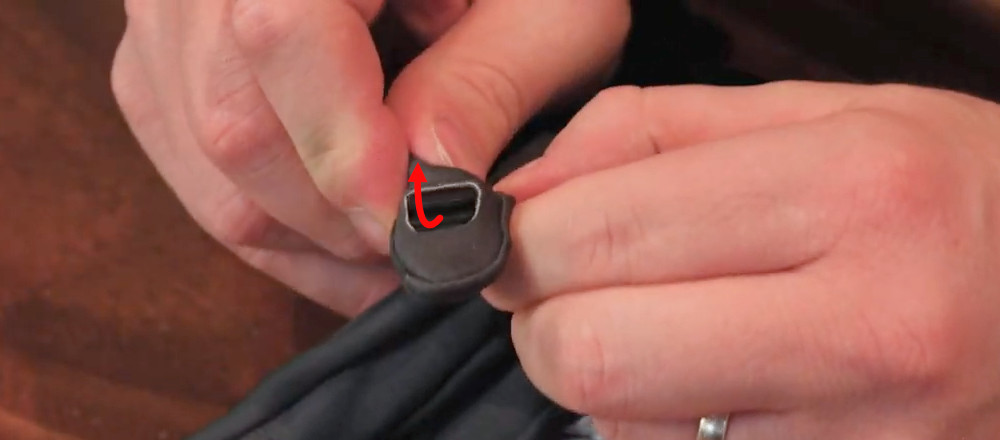

- Insert the
fingertip sensors
into the sensor cable tunnels inside the glove.

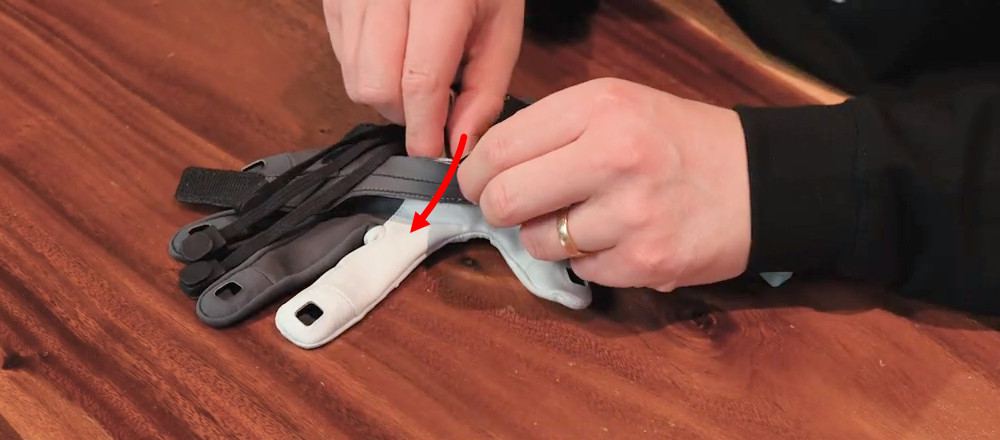

- Guide the
fingertip sensors
through the sensor cable tunnels inside the glove.

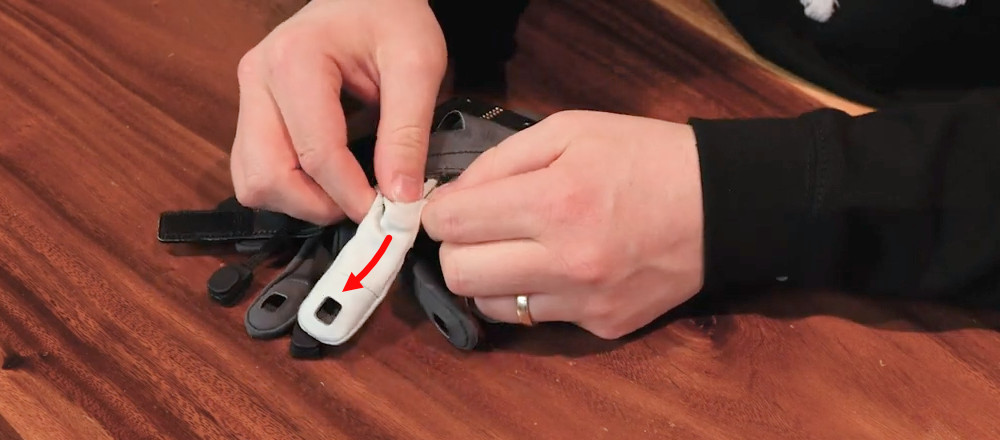

- Guide the
fingertip sensors
into the sensor cut-outs.

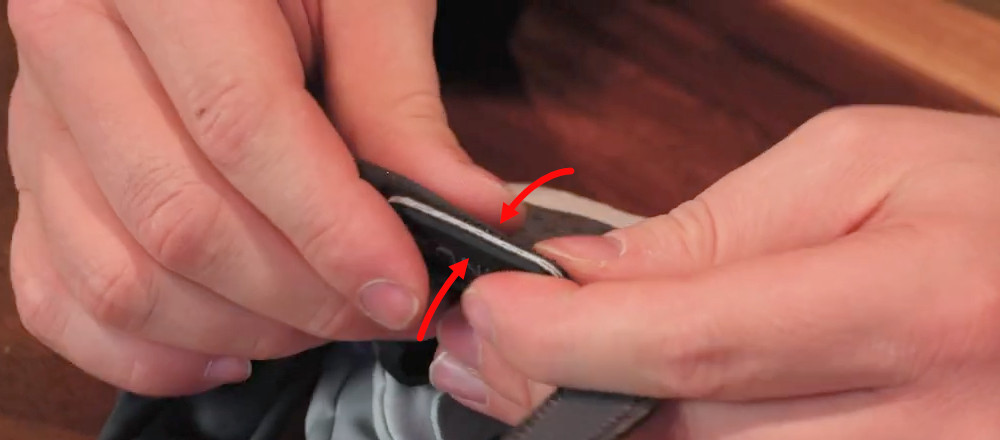

- Press down around the
fingertip sensors
to secure the sensor into the cut-outs.
- Align and attach the glove module base to the velcro patch.

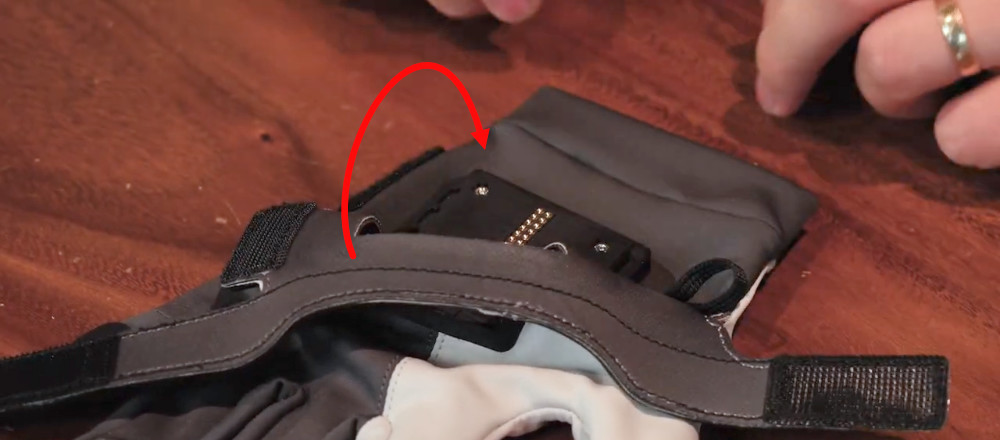

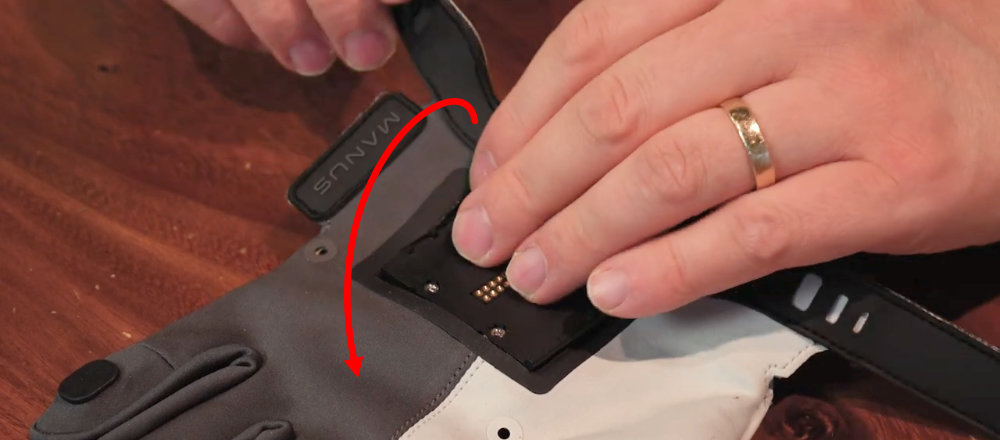

- Close the glove.
- Secure the velcro on the side of the glove.

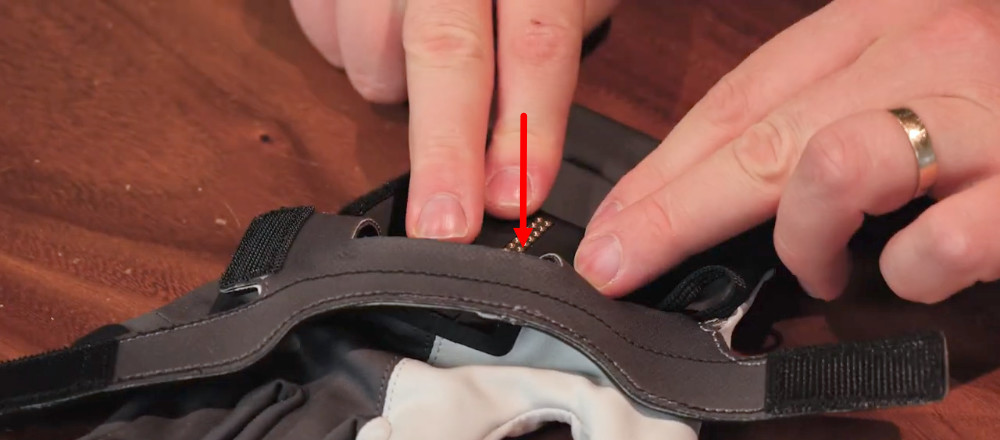

- Align the glove module base cut-out.

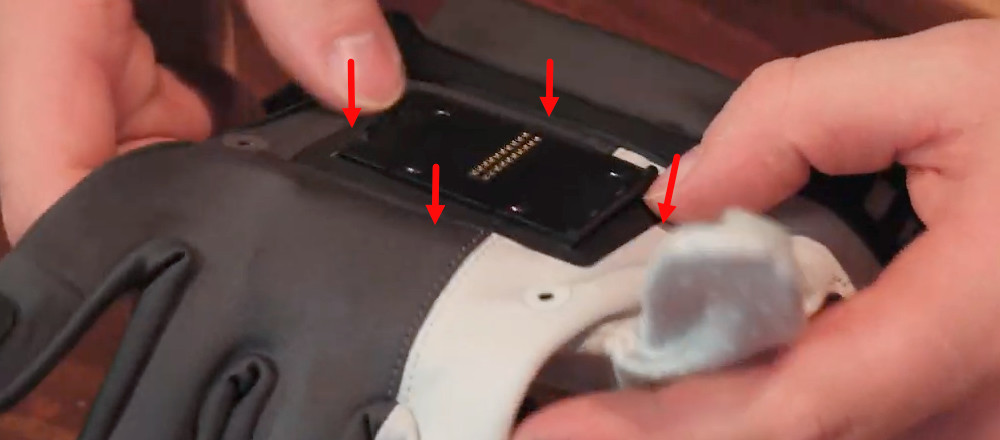

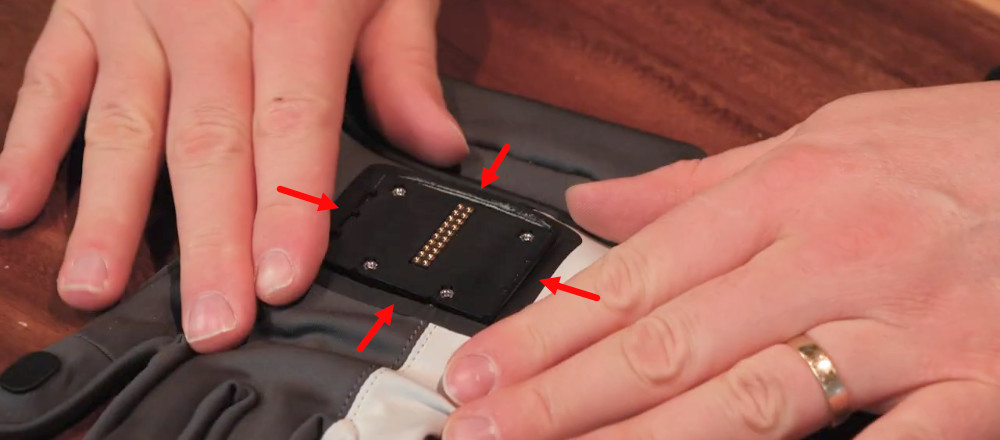

- Press down to secure the fabric around the glove module base cut-out.
- Align the the
Top Module
using thehinge
.

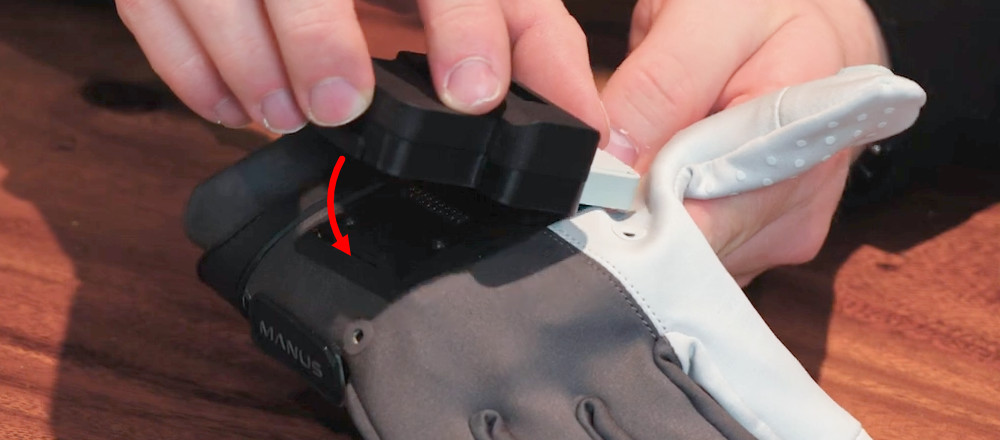

- Rotate the
Top Module
downwards onto thelatch
.

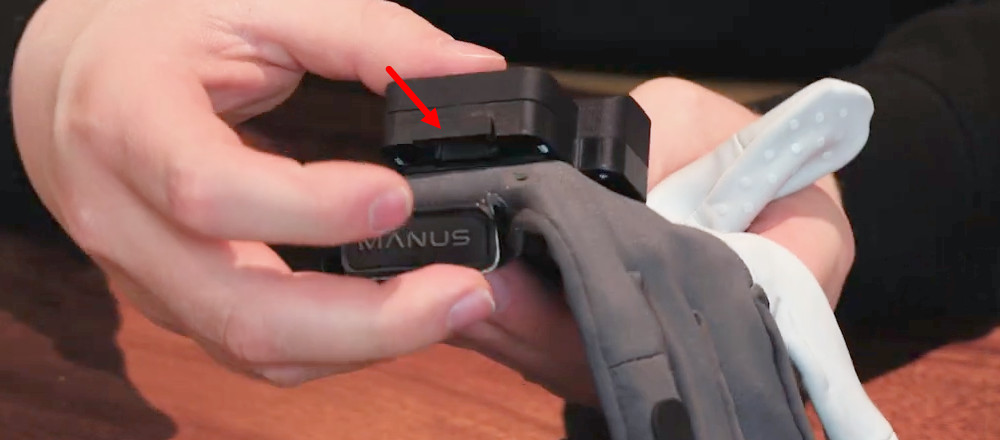

- Make sure the
latch
snaps into place, tightly securing theTop Module
.
- Slide the
battery
into theTop Module
until it locks into place.
Your Metagloves Pro is now fully reassembled and ready for use.
