Calibration

It only takes 4 simple steps to calibrate Metagloves Pro to your hands.

During the calibration, MANUS Core determines the dimensions of your hand skeleton and how to map the glove sensor data onto your digital fingers.

Calibration Steps

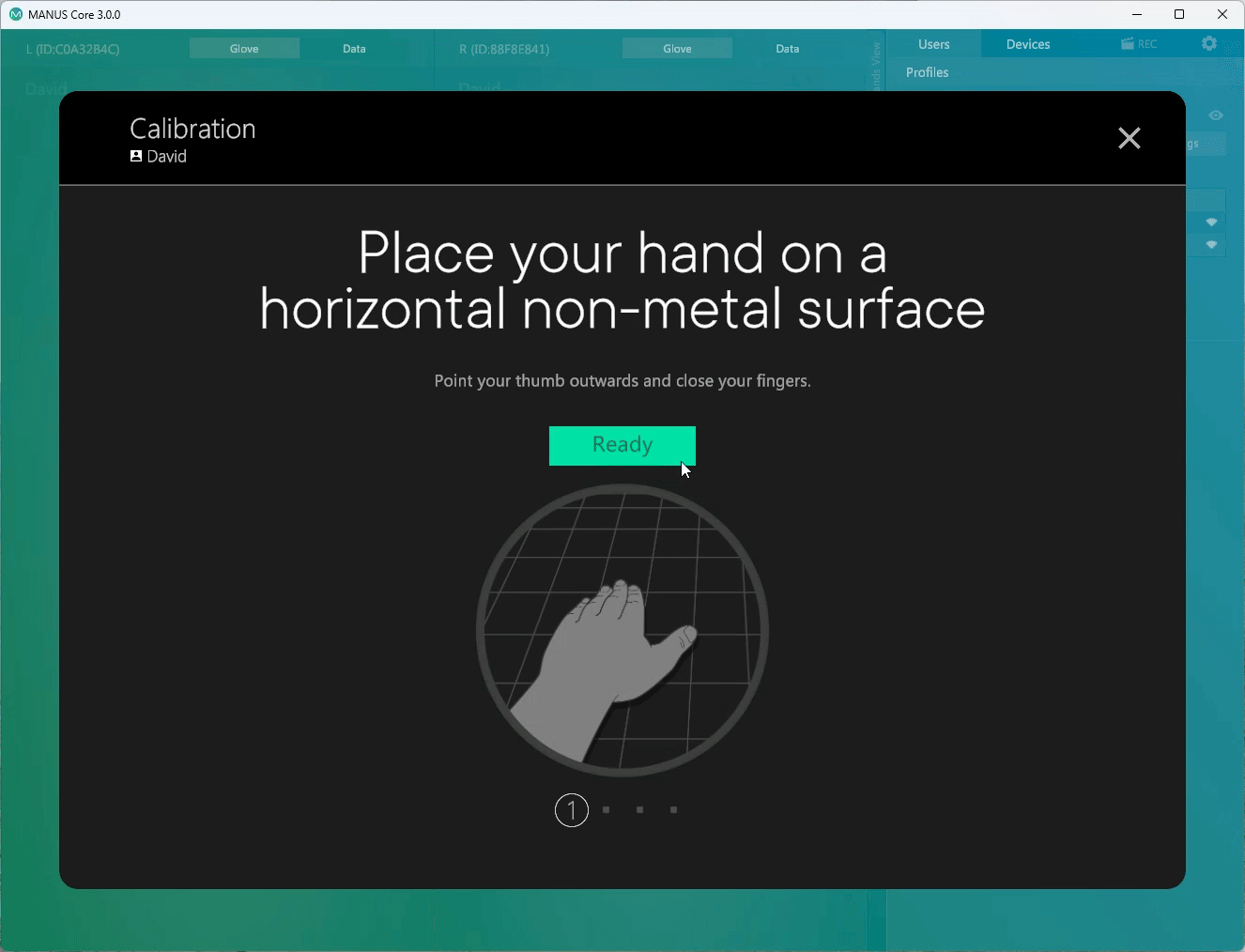

Step 1

Place your hand on a horizontal non-metal surface.

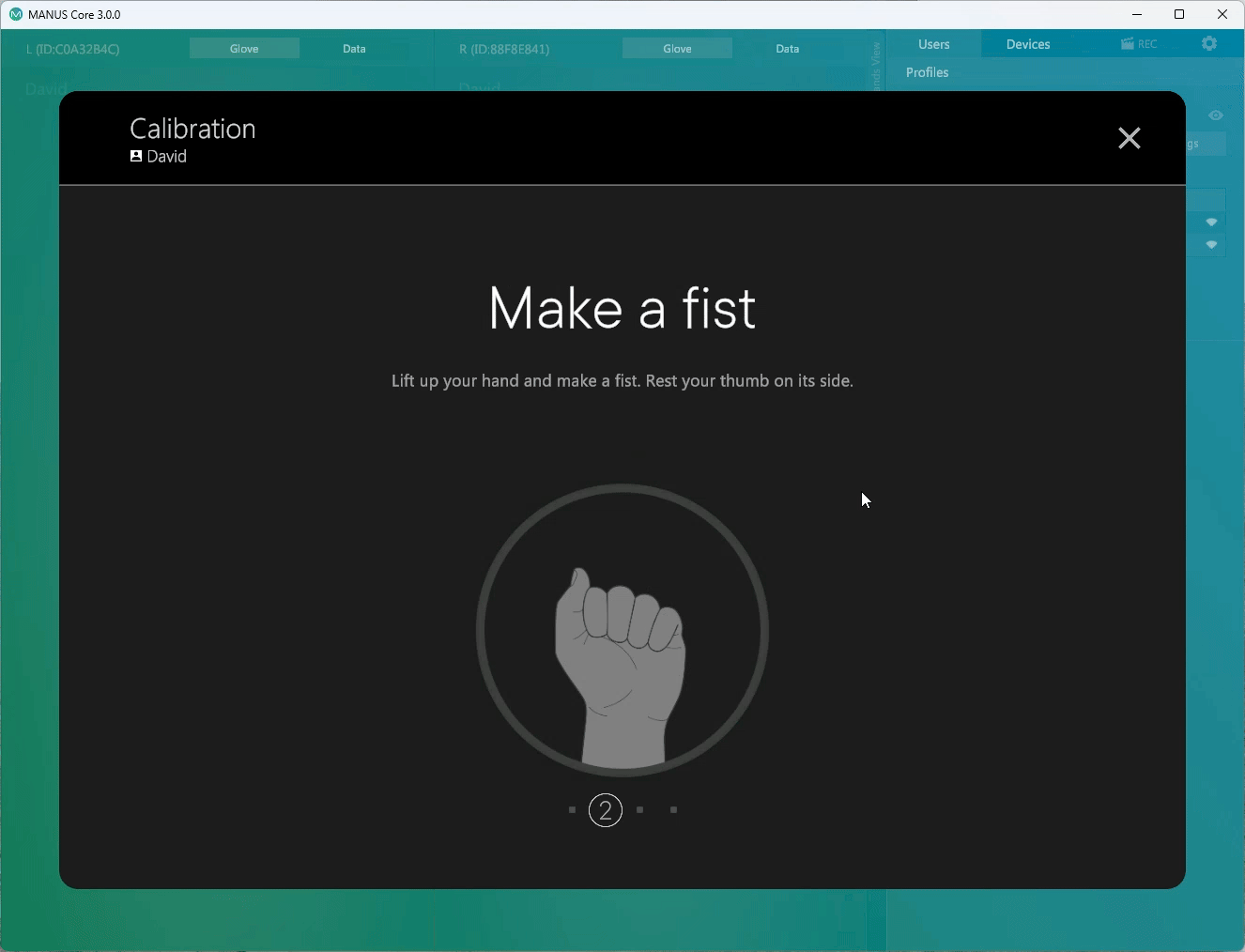

Step 2

Make a fist.

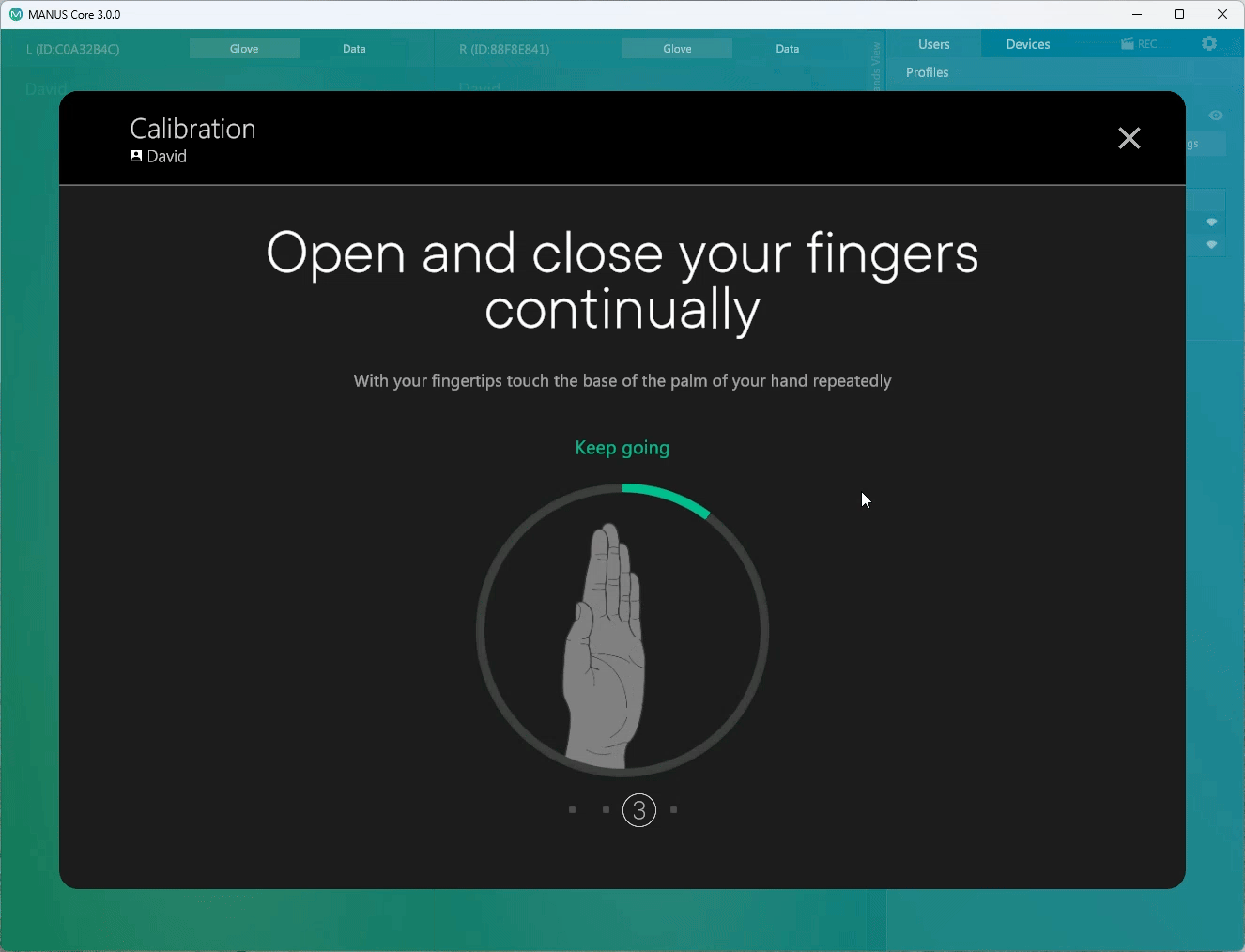

Step 3

Open and close your fingers continually.

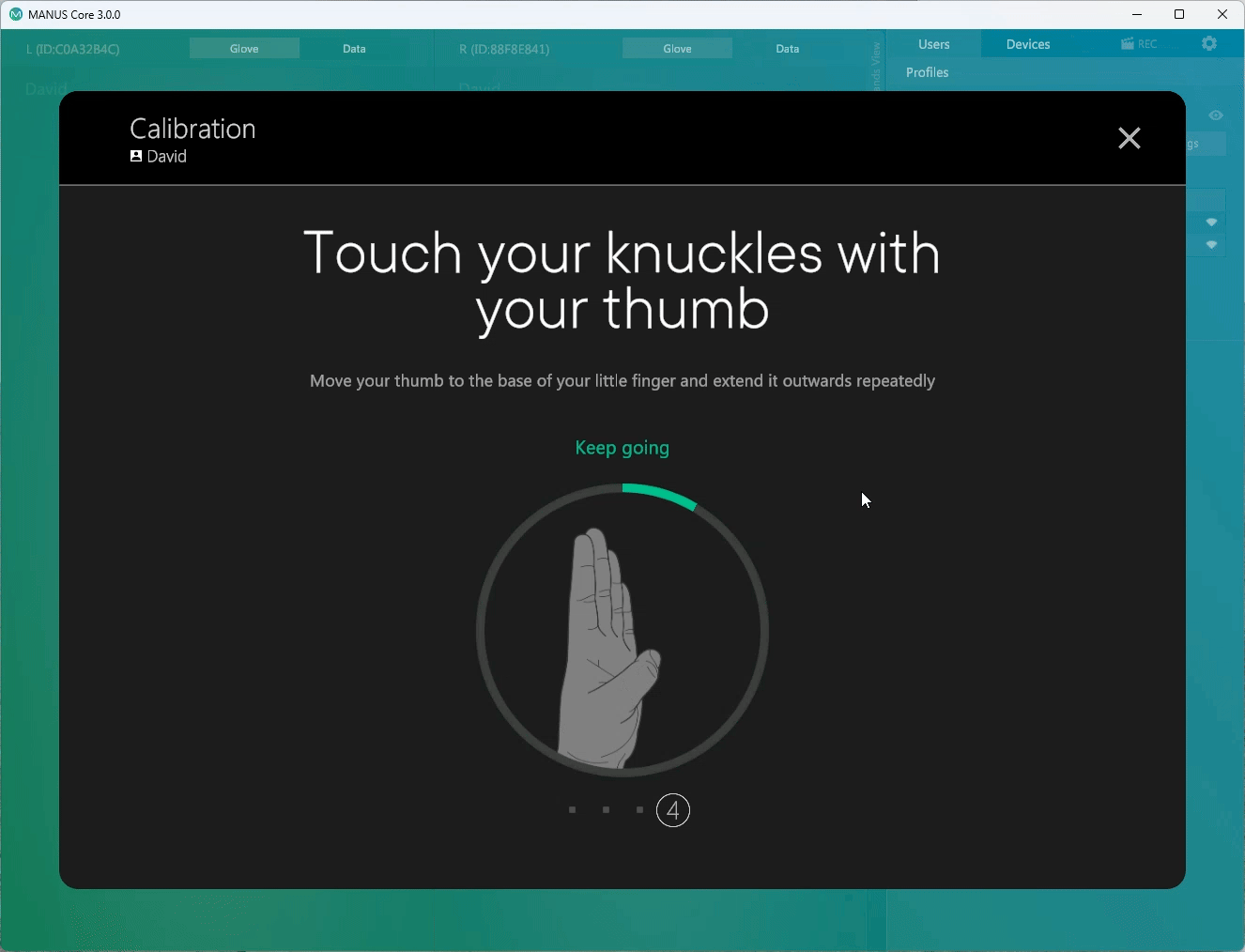

Step 4

Touch your knuckles with your thumb.

After finishing the calibration steps for your left hand, follow the same steps for your right hand.

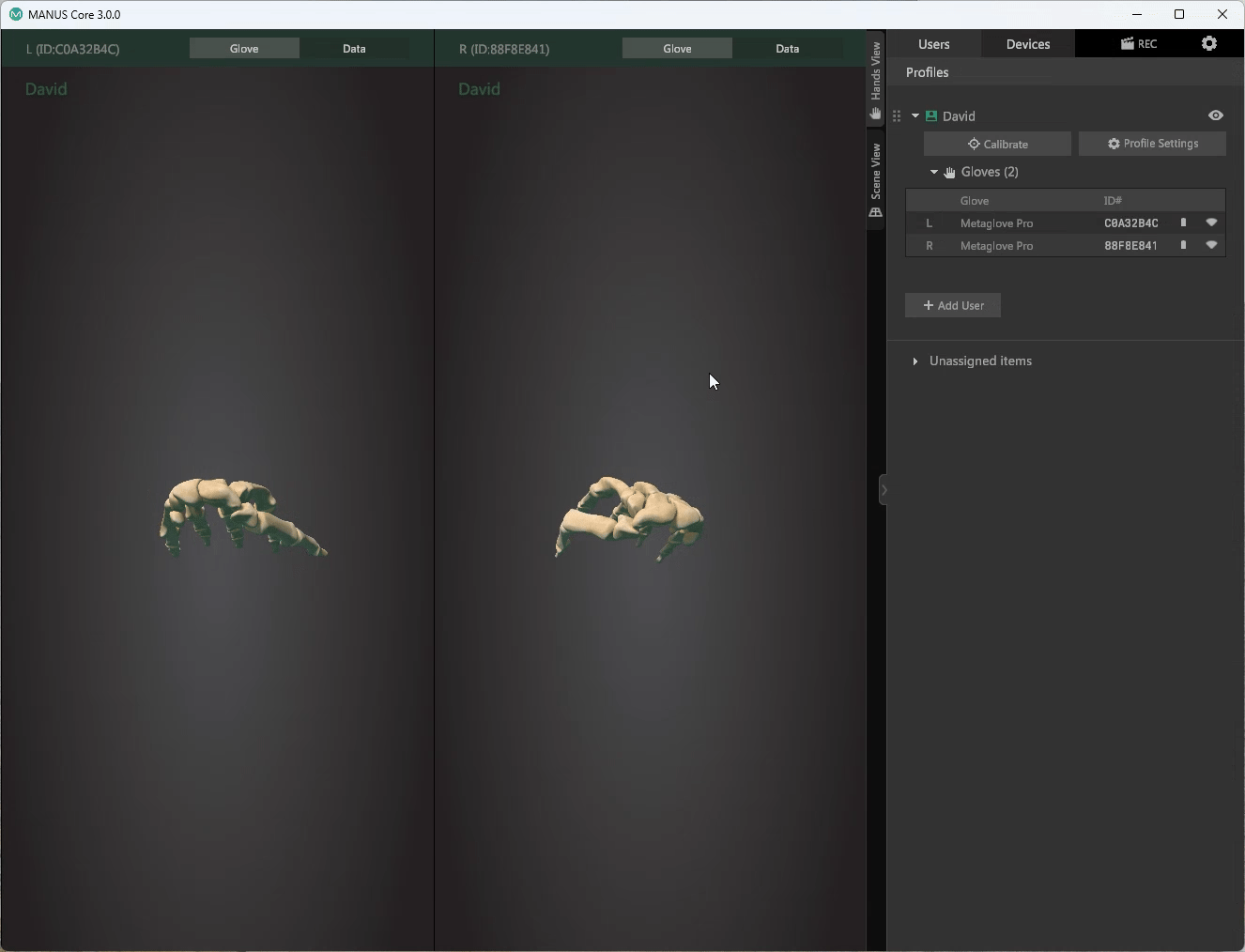

Visual inspection

With both calibrations finished, you can visually inspect the calibration result in MANUS Core.

For the best result, we recommend calibrating your gloves for every use.
