The Metagloves Pro come with MANUS Universal Mounting System. Through the mounting system you can connect different tracking devices to your gloves, allowing you to track the position and orientation of your hands.

HTC Vive Ultimate Tracker

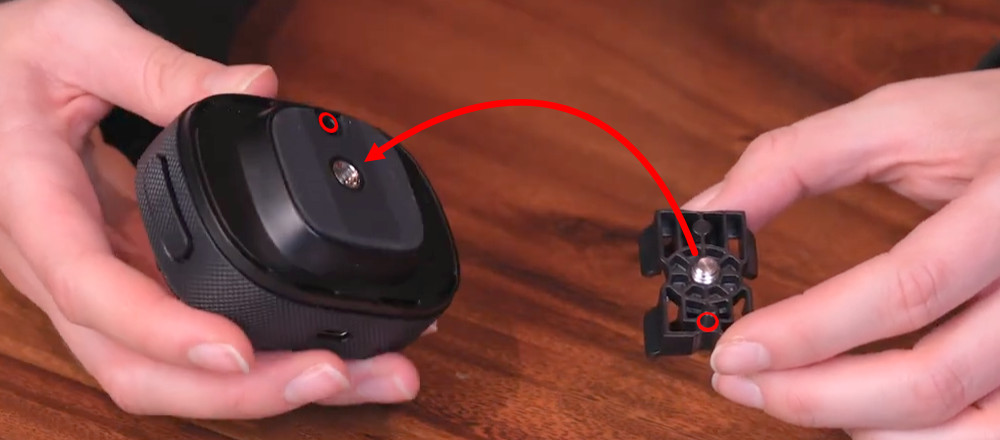

  1. Align the adapter using the orientation pin.

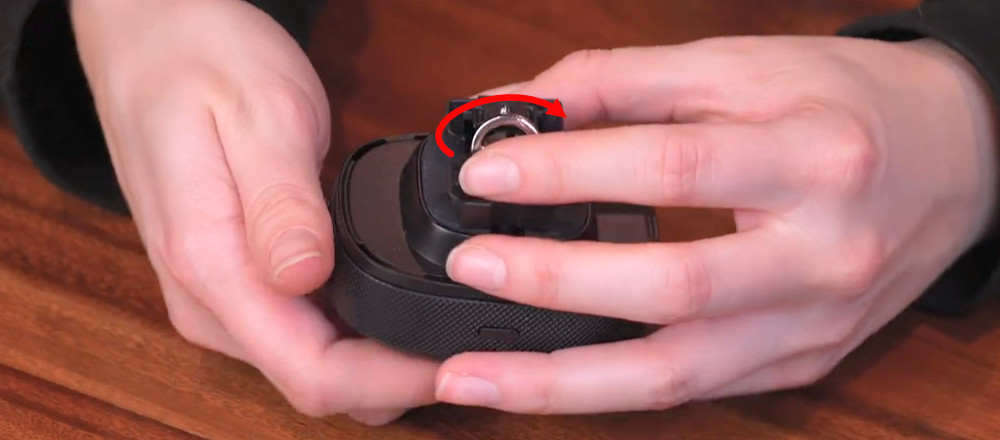

  1. Fasten the provided 1/4" screw to secure the adapter in place.

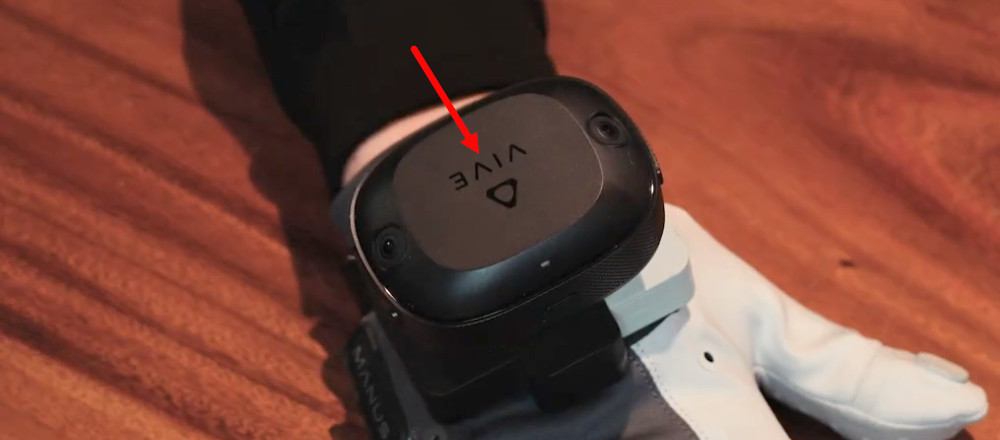

  1. Slide the tracker onto the glove.

HTC Vive Tracker

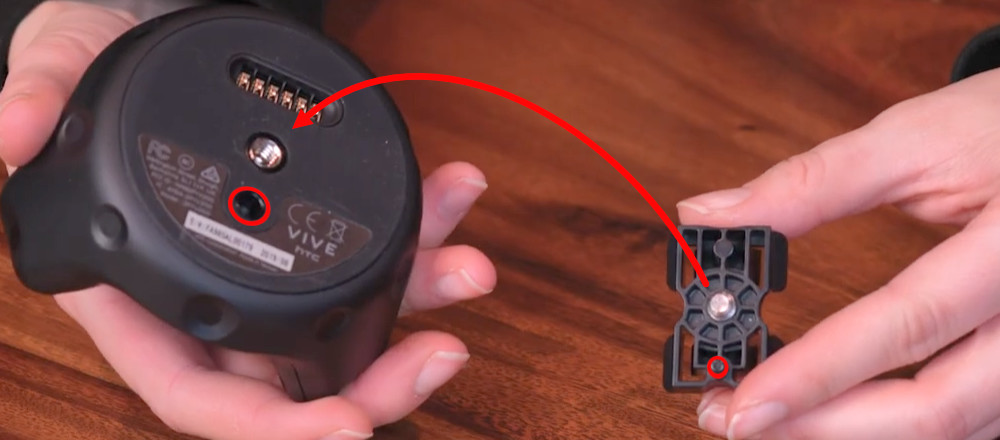

  1. Align the adapter using the orientation pin.

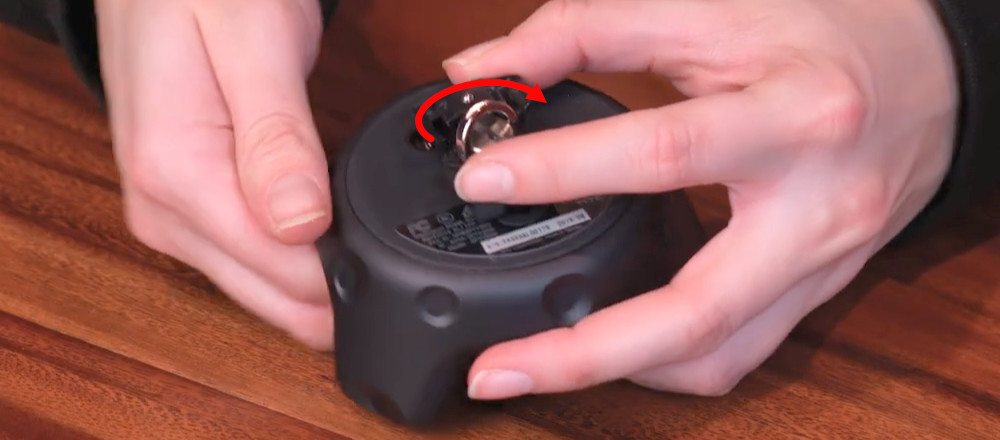

  1. Fasten the provided 1/4" screw to secure the adapter in place.

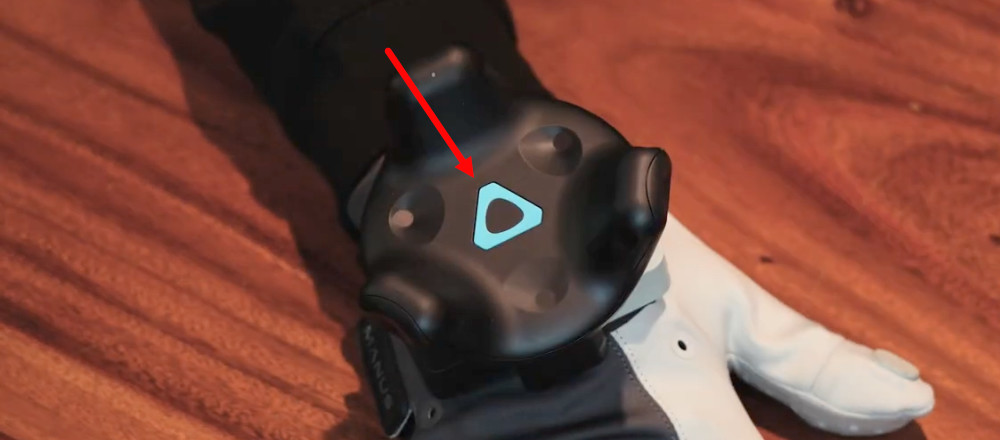

  1. Slide the tracker onto the glove.

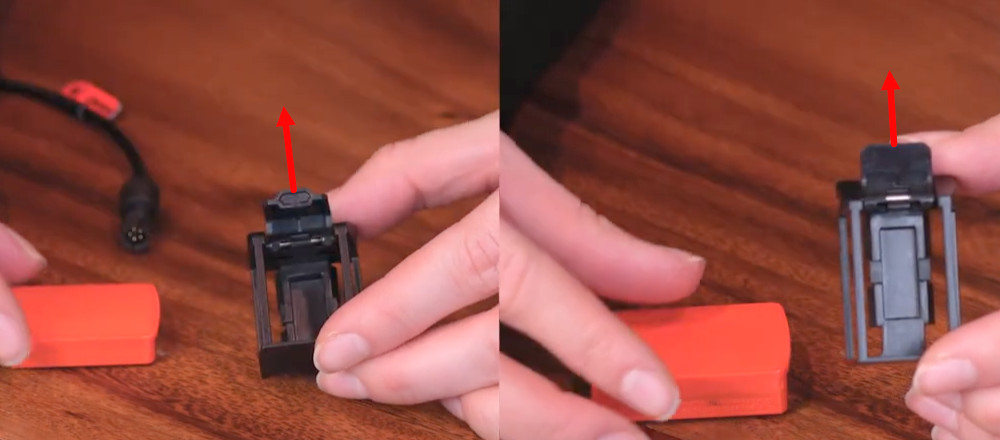

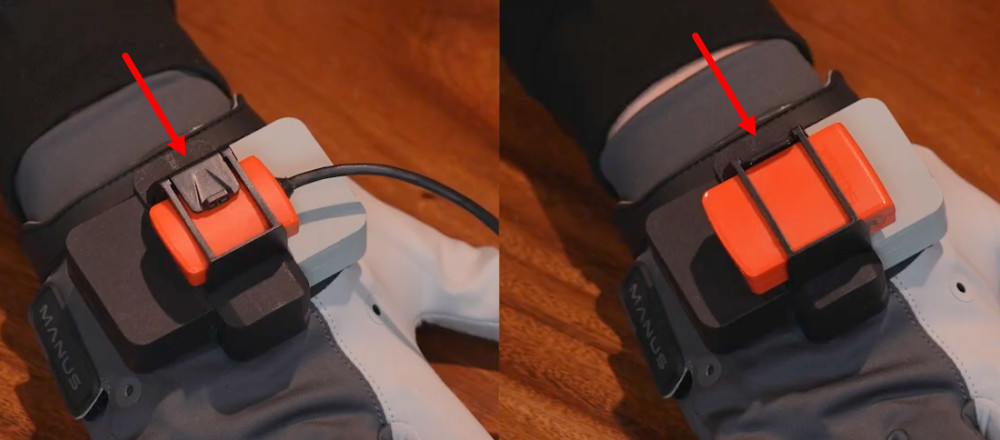

  1. Open the latch.

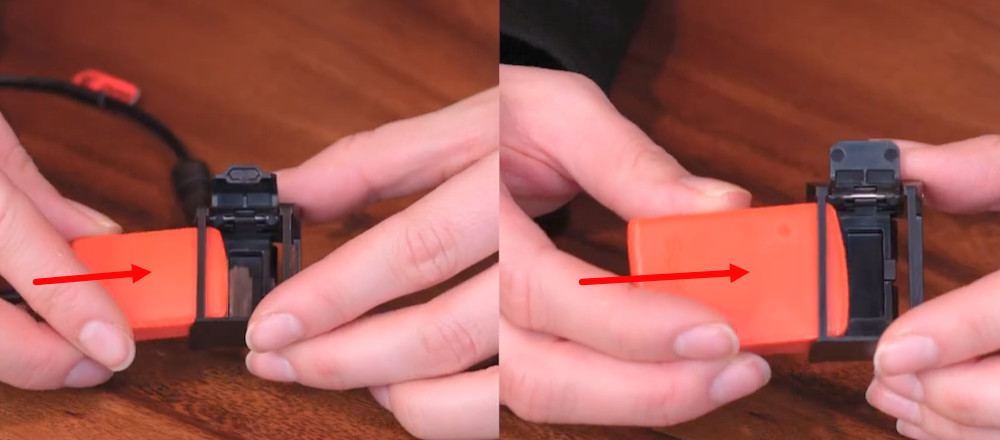

  1. Slide the tracker inside.

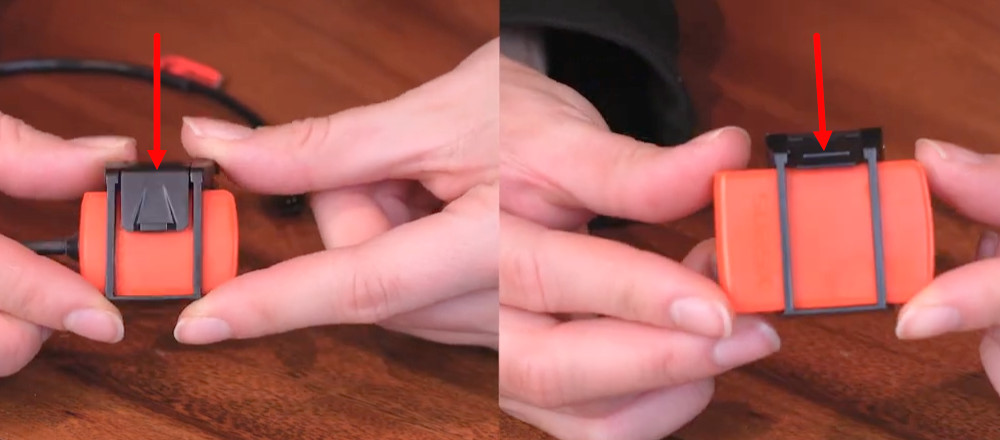

  1. Close the latch.

  1. Slide the tracker onto the glove.

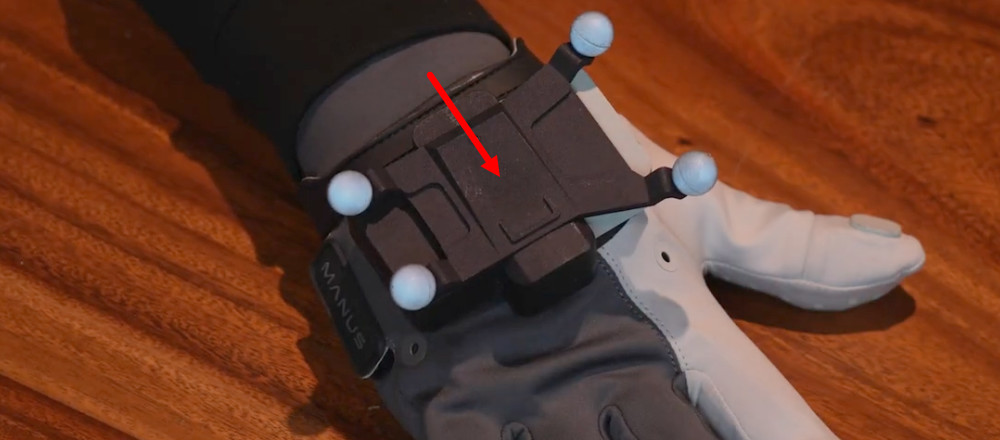

MANUS Rigid Marker

The MANUS Rigid Marker comes with an integrated mount, so you can directly slide the tracker onto the glove.
